The CNC machining process specializes in creating precise holes in a wide range of materials. It is suitable for all tasks from simple single-hole tasks to complex multi-axis operations.
This article will delve into nature, working principle, and a wide range of applications of CNC drilling, providing an insight into its types and operations.
What is CNC drilling?

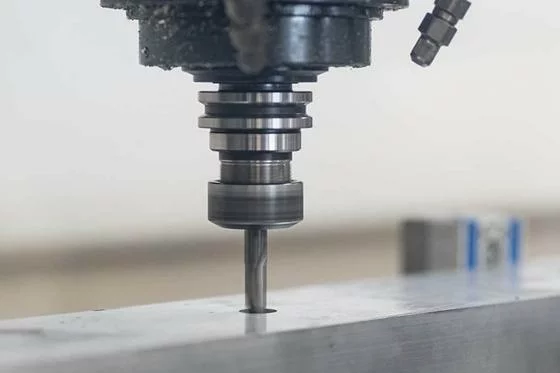

CNC drilling is a precision machining method that utilizes computer numerical control (CNC) to drill holes in materials such as wood, metal, plastic, or composite materials.
In CNC drilling, a rotating drill bit drills a circular hole in a stationary workpiece. A twist drill with multiple cutting edges is forced into the material and drills a hole that matches the diameter of the drill bit, primarily for assembling and installing bolts or screws.
How Does CNC Drilling Work?
CNC drilling transforms a digital design into a tangible part through a series of programmed steps, ensuring each hole is drilled with precise specifications.
Design and Planning
The process starts with conceptualizing the product and planning the drilling requirements. Ideas are converted into digital designs using CAD (Computer-Aided Design) software, which allows designers to create detailed 3D models, offering a blueprint for the manufacturing process.
CAD Modeling
After the initial planning, a detailed 3D model of the part to be drilled is developed using CAD software. This phase ensures precise modeling with all necessary specifications.
Material Selection
Choosing the right material is crucial for the success of the drilling operation. The material must be suitable for the intended use of the part and compatible with the drilling process.
Programming
This stage involves translating the CAD model into instructions that the CNC machine can understand. CAM (Computer-Aided Manufacturing) software develops these instructions, which are then converted into G-code, the language CNC machines read.
G-Code Generation
G-code contains all the instructions for the CNC machine, including the movement of the drill bit, drilling speed, and depth of each hole.
Setup
Before drilling begins, the machine is set up by installing the drill bit, securing the workpiece, and calibrating the machine to ensure precision.
Drilling
The core of the process involves the machine executing the G-code to drill holes into the workpiece. Various drilling cycles, such as G73 (Chip Breaking Cycle), G81 (Shallow Hole Circulation), and G83 (Deep Hole Circulation), are used depending on the requirements.
Monitoring and Adjustment
Continuous monitoring throughout the drilling process ensures everything proceeds as planned. Adjustments may be necessary to account for any deviations.
Post-Processing
After drilling, the workpiece often requires additional processing, such as deburring to remove sharp edges and finishing operations to achieve the desired surface finish.
Quality Control and Inspection
The final stage involves inspecting the drilled parts to ensure they meet the required specifications, including checking dimensions, surface finish, and overall quality of the holes.
What Are the Different Types of CNC Drilling Machines?
CNC drilling machines come in various types, each designed to meet specific requirements and applications. Understanding the different types helps in selecting the right machine for a particular drilling task.
- Vertical CNC Drilling Machines
Vertical CNC drilling machines have a vertically oriented spindle that moves up and down. They are widely used due to their versatility and ease of operation.
- Horizontal CNC Drilling Machines

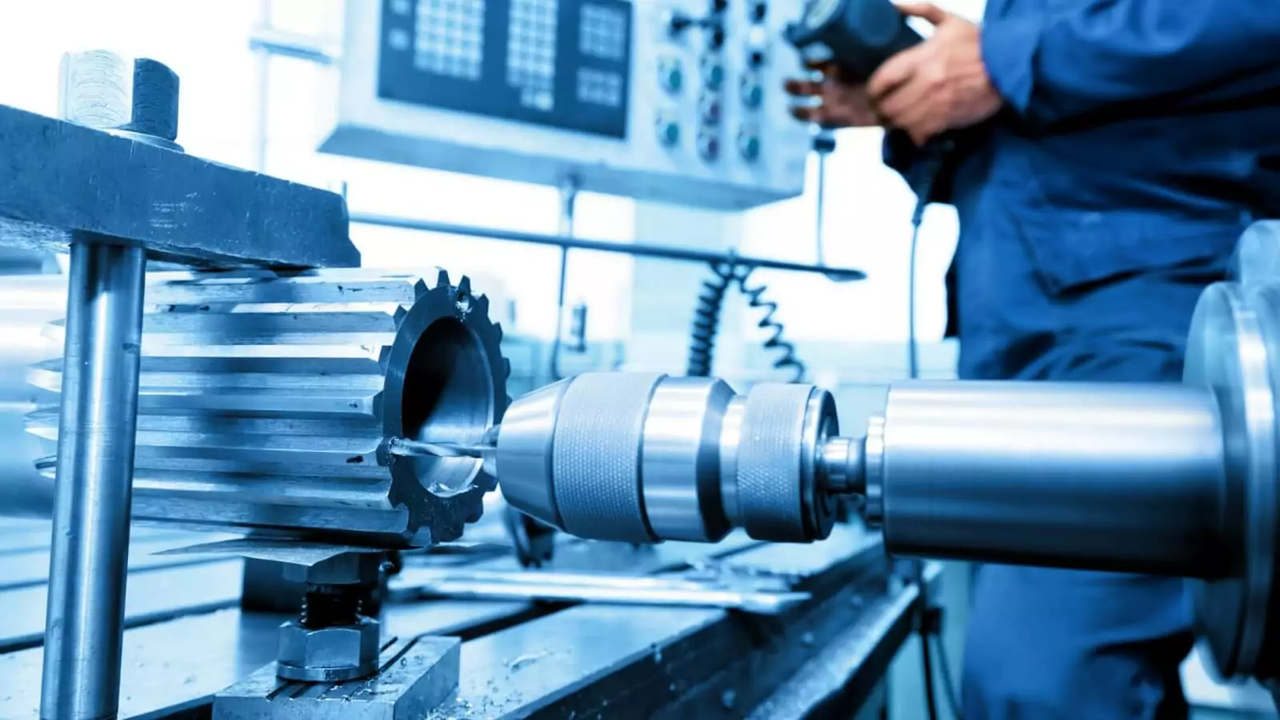

Horizontal CNC drilling machines feature a horizontally oriented spindle, which allows for the drilling of holes along the horizontal plane. These machines are particularly useful for drilling deep holes and for applications where the workpiece needs to be rotated or maneuvered into different positions.
- Multi-Axis CNC Drilling Machines
Multi-axis CNC drilling machines can move the spindle and the workpiece along multiple axes (usually three, four, or five). This capability allows for drilling holes at various angles and complex geometries, providing greater flexibility and precision.
- Deep Hole CNC Drilling Machines
Deep-hole CNC drilling machines are specifically designed to drill very deep holes with high precision. They use special techniques, such as gun drilling or BTA (Boring and Trepanning Association) drilling, to achieve depths that are significantly greater than the diameter of the hole.
- CNC Drilling and Tapping Machines
CNC drilling and tapping machines combine the functions of drilling and tapping (creating threads inside a hole) in a single machine. This combination enhances efficiency and reduces setup times.
- Gantry CNC Drilling Machines
Gantry CNC drilling machines feature a gantry structure, where the spindle moves along a bridge that spans over the workpiece. This design allows for drilling large and heavy workpieces with high precision.
- Portable CNC Drilling Machines
Portable CNC drilling machines are lightweight and mobile, designed for drilling tasks that require flexibility and on-site operations.
What Are the Different Types of CNC Drill Bits?
CNC drilling operations require various types of drill bits, each designed for specific materials and applications.
- Twist Drill Bits
The twist drill bit is the most common type of drill bit and is characterized by a spiral flute that helps to remove chips from the hole as it is drilled.
- Centre drills
Center drills are used to create a starting point for larger drills. Centre bits are usually shorter and stiffer to reduce the chance of the bit wobbling or deflecting while drilling.
- Spot drills
Setting point drills are designed to create a small indentation or “point” that provides a guide for the subsequent drilling process. These drills are shorter, harder and have excellent hole-starting accuracy. They are particularly useful in CNC operations to ensure that the main drill does not deviate from the intended drilling path.
- Step drills
Step drills have a unique design with multiple diameter steps along the length of the drill. This design allows the drill to drill different-sized holes without having to change bits.
- Indexable drills
Indexable drills feature replaceable cutting inserts that can be rotated or replaced when they become dull. This design reduces downtime and maintenance costs because only the inserts need to be replaced rather than the entire drill.
- Carbide drills
Carbide drills have a carbide cutting edge brazed to the steel shank. Carbide material is harder and more heat resistant than steel, making these drills suitable for drilling hard materials such as stainless steel, cast iron and composites.
- High-Speed Steel (HSS) Drill Bits
HSS drills are made from a special steel that retains its hardness at high temperatures. These bits are versatile and can be used to drill a variety of materials including wood, plastics and metals. HSS drills are known for their durability and cost-effectiveness.
- Cobalt Drill Bits
Cobalt drill bits are made from cobalt-alloyed high-speed steel for greater heat resistance and durability. Cobalt drills are particularly effective for drilling hard metals such as stainless steel and titanium. Cobalt bits hold their cutting edge longer and are less prone to wear than standard HSS bits.
- Auger bits
Auger bits are designed for drilling large, deep holes in wood. The spiral head of the auger bit pulls the bit into the material, thus reducing the force required to drill the hole. The wide cutting edge helps to effectively remove wood chips, preventing clogging and ensuring smooth drilling.
What Are the Applications of CNC Drilling?
Aerospace Industry: CNC drilling creates precise holes for fasteners and rivets in aircraft structures, ensuring safety and integrity.
Automotive Industry: It produces accurate holes in engine components, transmission systems, and brake systems for reliable automotive parts.
Electronics Manufacturing: CNC drilling is essential for drilling tiny holes in printed circuit boards (PCBs) for electronic components.
Medical Device Manufacturing: It ensures precise and clean holes in surgical instruments, implants, and diagnostic equipment for safety and effectiveness.
Construction Industry: CNC drilling is used to create holes in structural steel, concrete, and other materials for secure assembly in construction projects.
Custom and Prototype Manufacturing: It allows for the rapid production of custom parts and prototypes with exact specifications.
Furniture Manufacturing: CNC drilling creates precise holes for dowels, screws, and fasteners in wood, plastic, and metal furniture components.
Oil and Gas Industry: It drills precise holes in tough materials for drilling rigs, pipelines, and other equipment, ensuring durability and safety.
Mold and Die Making: CNC drilling produces precise holes in molds and dies for casting and forming high-quality parts.
Jewelry Making: It creates intricate designs and precise holes in precious metals and gemstones for detailed jewelry pieces.
What are the Advantages of the CNC Drilling Process?
Precision and Accuracy: CNC drilling ensures precise and accurate hole placement, reducing errors and inconsistencies.
Efficiency and Speed: CNC machines operate at high speeds, significantly increasing production rates and reducing downtime.
Flexibility and Versatility: They can perform a wide variety of drilling tasks on different materials, making them suitable for numerous applications.
Consistency and Repeatability: CNC drilling provides consistent results, ensuring every hole meets the same specifications.
Reduced Labor Costs: Automation reduces the need for manual intervention, leading to lower labor costs.
Enhanced Safety: Minimal human intervention reduces the risk of accidents and injuries, ensuring safer operations.
Complex Geometries: CNC drilling handles complex geometries and intricate patterns that manual drilling cannot achieve.
Minimal Material Waste: Precision reduces material waste, saves costs, and supports sustainable manufacturing.
Easy Integration with CAD/CAM Systems: Seamless integration with CAD/CAM systems enhances workflow efficiency and reduces errors.
Lower Maintenance Requirements: Designed for durability, CNC machines require less frequent maintenance, reducing downtime and costs.
Does CNC Drilling Have Any Limitations?
High Initial Setup Costs: The initial investment for CNC drilling machines and software can be prohibitively expensive for small businesses.
Need for Skilled Operators: Operating and maintaining CNC drilling machines requires skilled personnel, which can be a challenge to source and retain.
Potential for Tool Wear and Breakage: Despite their precision, CNC drilling tools are subject to wear and breakage, necessitating regular maintenance and replacements.
Limitations in Drilling Certain Materials: CNC drilling may not be suitable for extremely hard or brittle materials, which can lead to excessive tool wear or failure.
Conclusion
Holes are the basis for fastening. CNC drilling is a precise and fast method of drilling holes in a variety of materials. Whether your project requires small, complex holes or large, sturdy holes, CNC drilling solutions can meet your every requirement.
